Precision luthier tools. Made in Virginia, USA. Lifetime Warranty.

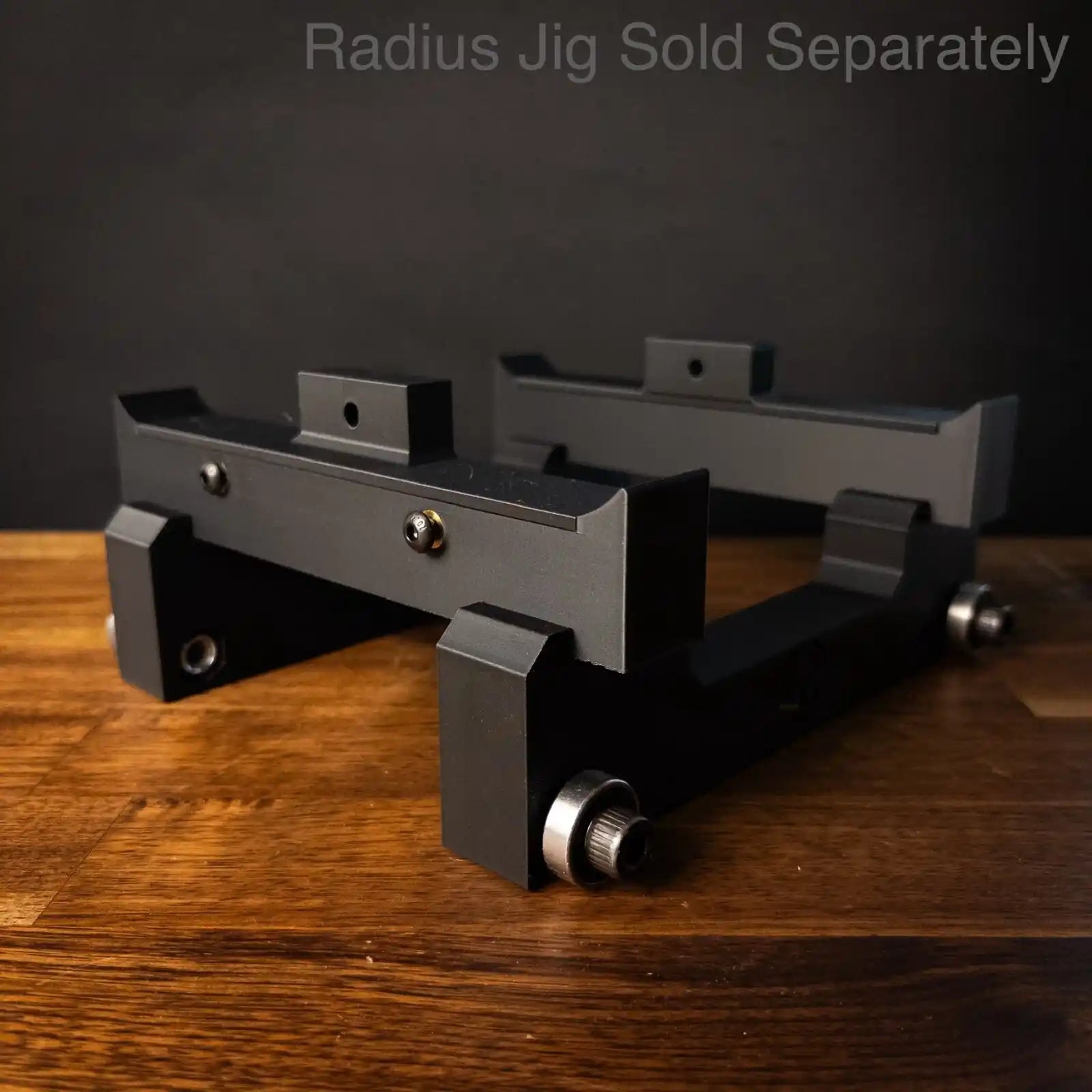

  • T-shaped truss rod inserts with mounting screws

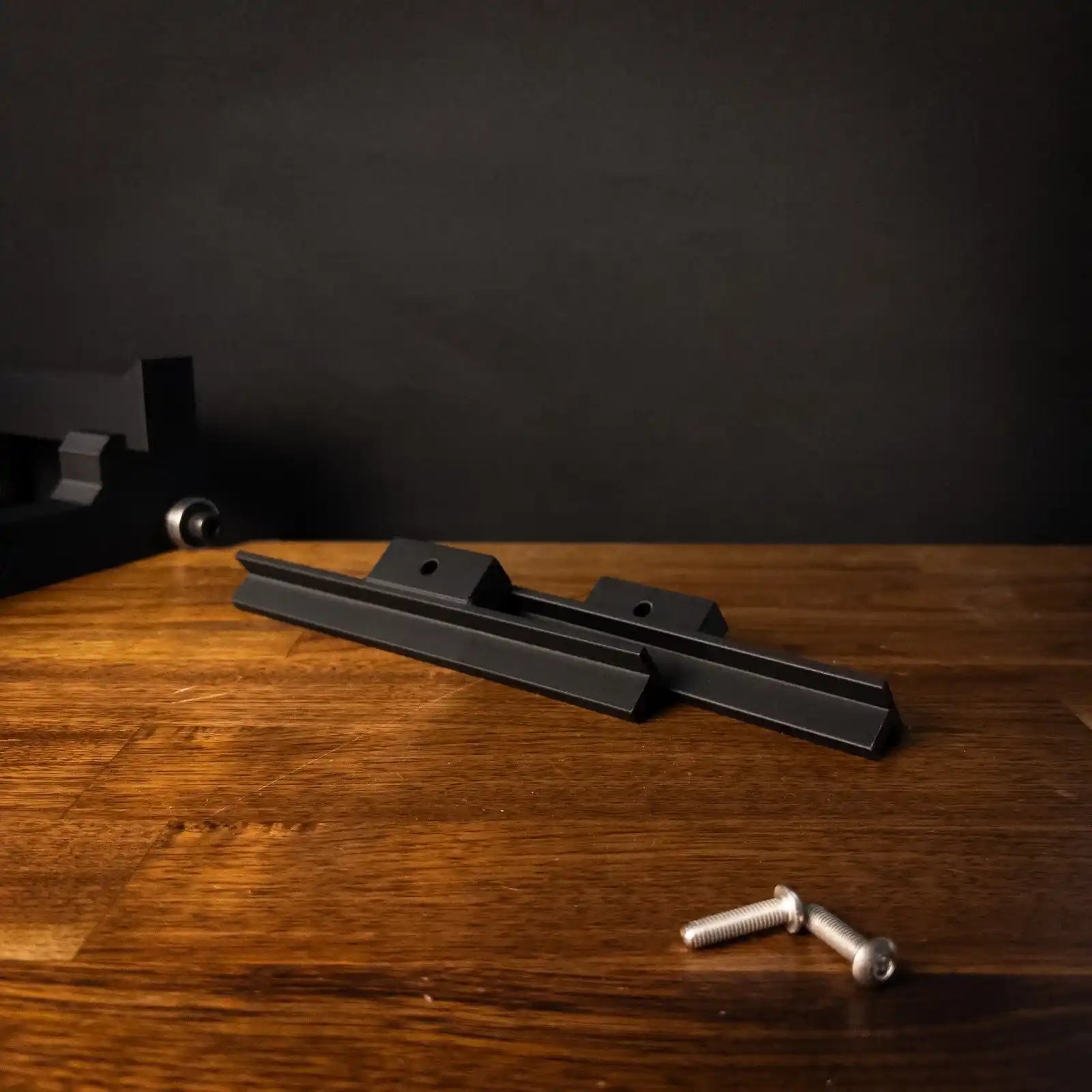

  • T-shaped truss rod inserts mounted (radius jig sold separately)

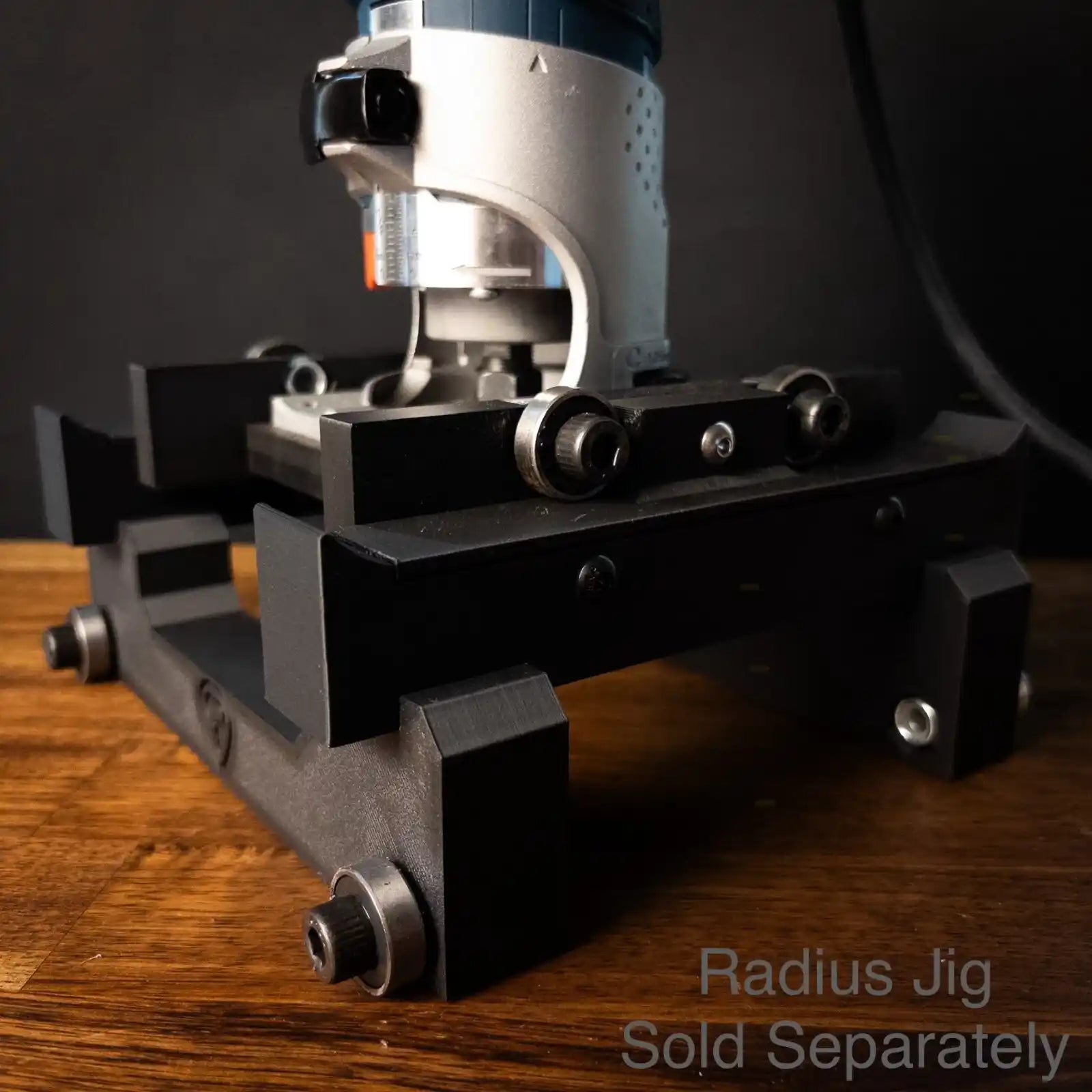

  • T-shaped truss rod inserts with router mounted (radius jig sold separately)
1 3

T-Shaped Truss Rod Inserts for Old Version of Fretboard Radius Jig

T-Shaped Truss Rod Inserts for Old Version of Fretboard Radius Jig

$25.00
$25.00
Sale Sold out
Jig Size

Ships in 3-4 business Days

T-shaped truss rod inserts for jigs purchased before May 24th, 2025. If your router base does not have a brass threaded insert in the center, this is what you need. If your router base has a brass insert, you have the current version of the jig. See Truss Rod Inserts for Fretboard Radius Jig instead.

View full details

FAQ

Which radius should I choose?

Here is how the common radii map to real instruments.

  • 7.25" Vintage Fender. Pre-1983 Strat and Tele, and vintage P and J Bass. The fussiest to set up, since notes will choke on bends unless the action stays a little higher.
  • 9.5" The modern Fender standard on both guitar and bass. If you only ever used one radius, this is it.
  • 10" PRS and some Music Man.
  • 12" Gibson. Les Paul and SG, and most modern four and five string basses.
  • 14" Modern Fender Ultra and Charvel.
  • 16" The shred end. Ibanez, Jackson, Schecter, and modern five and six string bass.
  • 20" Very flat. Extended range guitar and flat modern bass.

Metric 400mm and 430mm are also stocked, and we cut custom radii at no extra charge. Tell us the number.



Can the jig cut a compound radius?

No. It produces a single continuous radius along the full length of the board. Plenty of modern necks are compound, 10" to 16" being the common one, so it is worth being clear that this jig will not do that.
