Precision luthier tools. Made in Virginia, USA. Lifetime Warranty.
T-Shaped Radius Insert for Old Version of Fretboard Radius Jig
T-Shaped Radius Insert for Old Version of Fretboard Radius Jig
Couldn't load pickup availability
Ships in 3-4 business Days

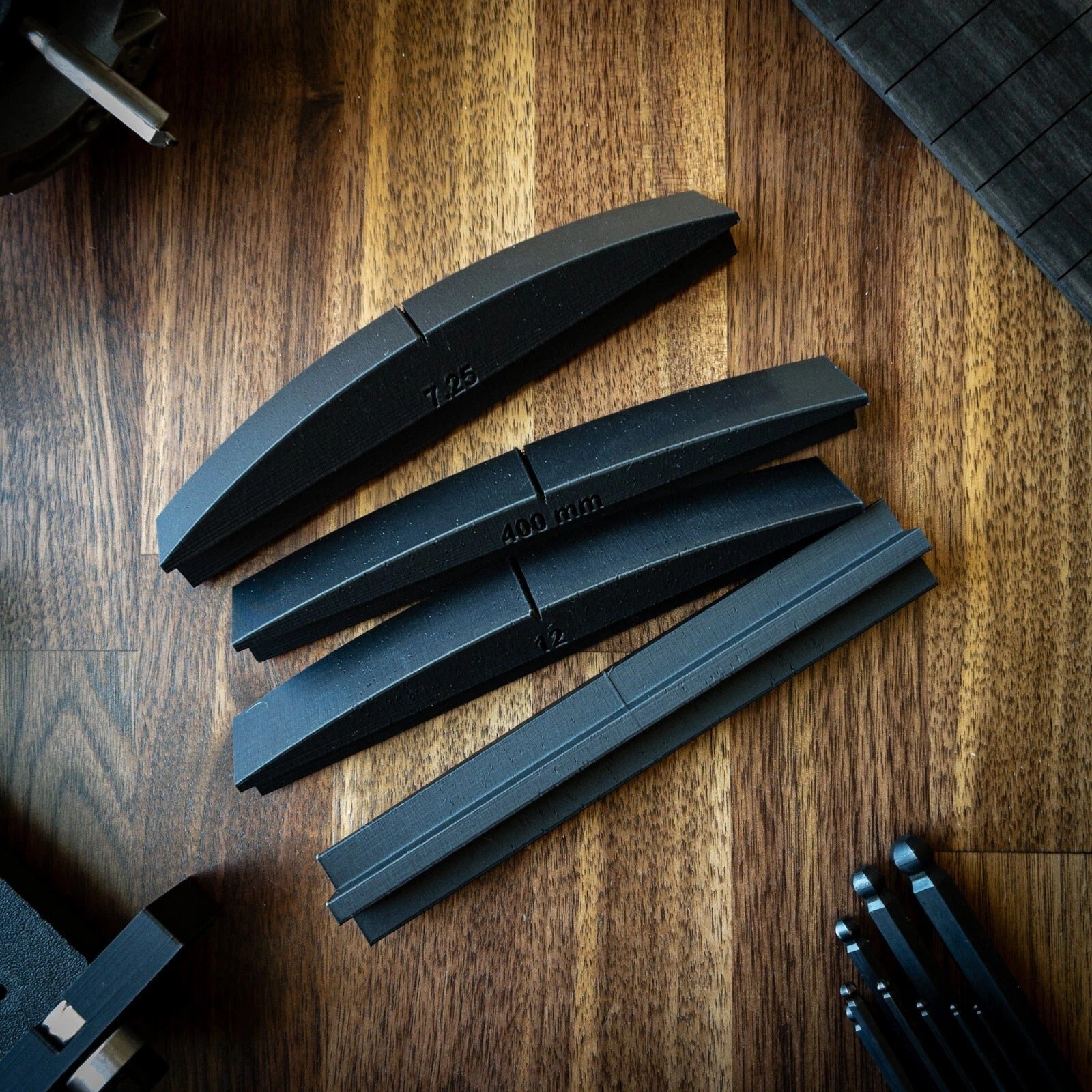

T-shaped radius inserts for jigs purchased before May 24th, 2025. If your current inserts are T-shaped, this is what you need. If your inserts are rectangular, you have the current version of the jig. See Radius Inserts for Fretboard Radius Jig instead.
Share
Collapsible content
FAQ
Which radius should I choose?
Here is how the common radii map to real instruments.
- 7.25" Vintage Fender. Pre-1983 Strat and Tele, and vintage P and J Bass. The fussiest to set up, since notes will choke on bends unless the action stays a little higher.
- 9.5" The modern Fender standard on both guitar and bass. If you only ever used one radius, this is it.
- 10" PRS and some Music Man.
- 12" Gibson. Les Paul and SG, and most modern four and five string basses.
- 14" Modern Fender Ultra and Charvel.
- 16" The shred end. Ibanez, Jackson, Schecter, and modern five and six string bass.
- 20" Very flat. Extended range guitar and flat modern bass.
Metric 400mm and 430mm are also stocked, and we cut custom radii at no extra charge. Tell us the number.
Can the jig cut a compound radius?
No. It produces a single continuous radius along the full length of the board. Plenty of modern necks are compound, 10" to 16" being the common one, so it is worth being clear that this jig will not do that.
I absolutely love this tool it saves me so much time, and it works perfectly. I recommend this to anyone who build fretboards. It makes life simple, and easier in the guitar building world. Thank you for creating this.
